Description:
Cartridge heater is a kind of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr80/20). It is used to heat in plastic injection moulds, dies, platens .
Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.

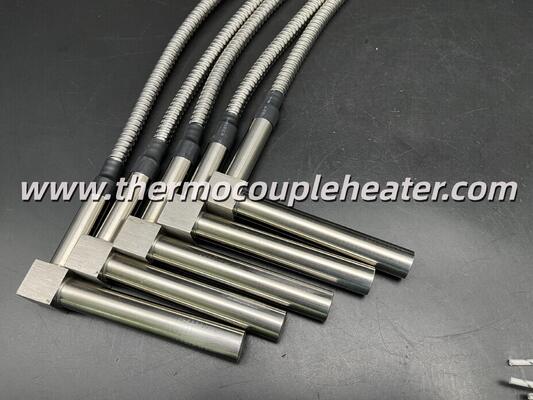

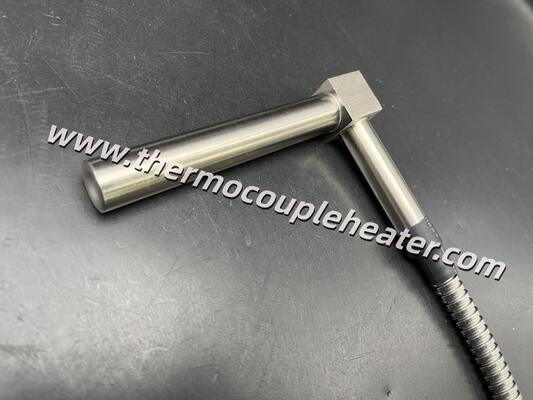

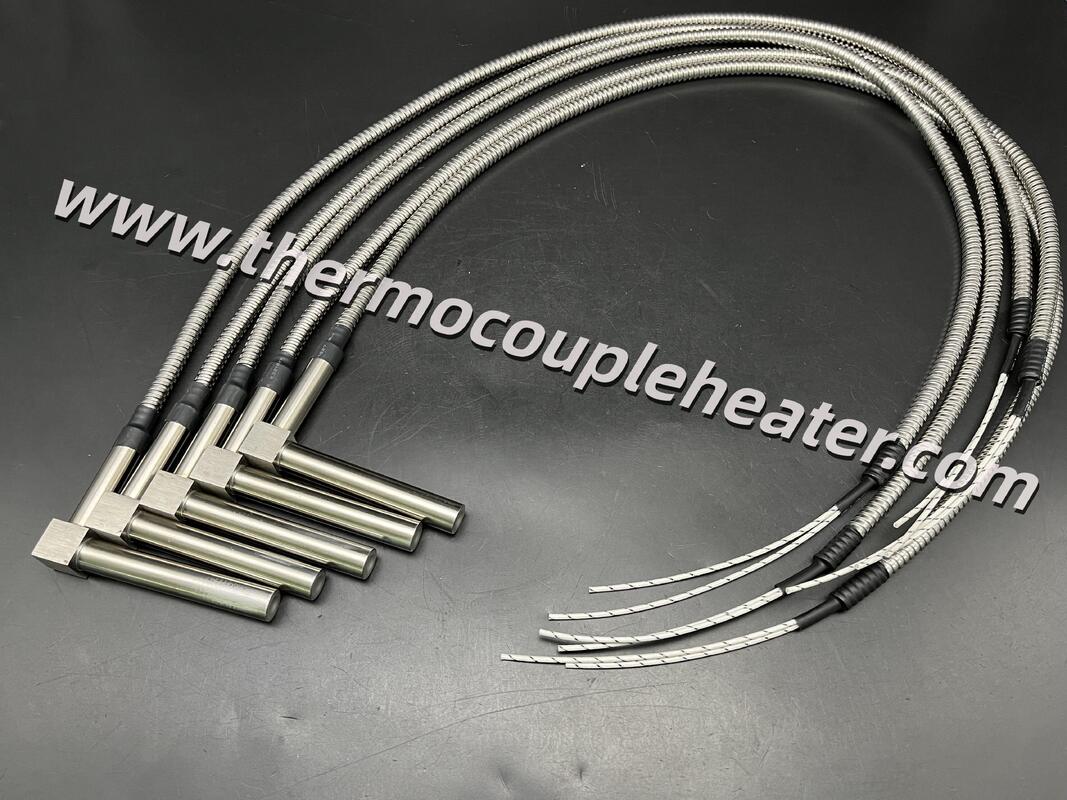

This robust cartridge heater features a unique 90° outlet and a steel cube junction, specifically designed for high-power heating in tight or awkward spatial configurations. The steel-armored hose provide maximum durability and easy routing for demanding industrial environments.
GME produced cartridge heater sprovide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures.Our experience ensures that the performance and life expectancy of our cartridge heaters supersedes the cartridge heater of other companies.
Feature
1. Available in 2-100mm diameters in stainless steel or Incoloy;
2. Low to high density is available ;
3. Lead wire -nickel (instead of brass ) ;
4. Moistureproof- IP65 ;
5. Ambient temperature is up to 400℃ for the Lead wire insulation material ;
6. Distributed wattage is available ;
7. Split cartridge heaters is available ;
Technical Details
| 1 |
Inside magnesium oxide insulation material: |
99.99% high purity magnesium oxide |
| 2 |
Heating element: |
high durance and high temperature NiCr8020 heating elements from Germany |
| 3 |
TC material: |
High quality TC elements to ensure ±5 ℃ tolerance |
| 4 |
Max working temperature |
1100℃ |
| 5 |
High voltage stability test: |
Less than 0.5mA leak under 1000V for 30 seconds |
| 6 |
OD range: |
2mm-100mm |
| 7 |
The range of the Total Length: |
20mm----2500mm |
| 8 |
Maximum power density: |
60w/cm² |
| 9 |
Unheated zone: |
10mm at lead end and about 5mm at bottom |
| 10 |
Lead options: |
A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside |
Applications:
Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.
• Hot Runner Bushings
• Mold die and platen heating
• Medical & Laboratory Apparatus
• Shoe Making Industry
• Semiconductor chamber heating
• Semiconductor wafer lead connection
• Semiconductor wire and die bonding
• Freeze protection and de-icing of equipment in cold climates or applications
• Humidity control
• Test sample heating in gas chromatography
• Marking & Sealing Machinery
• Seal bars in Packaging Industry
