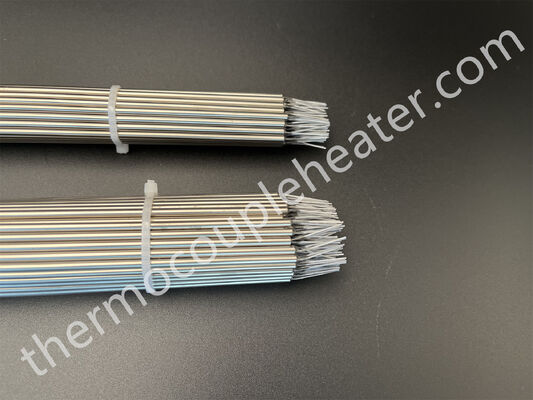

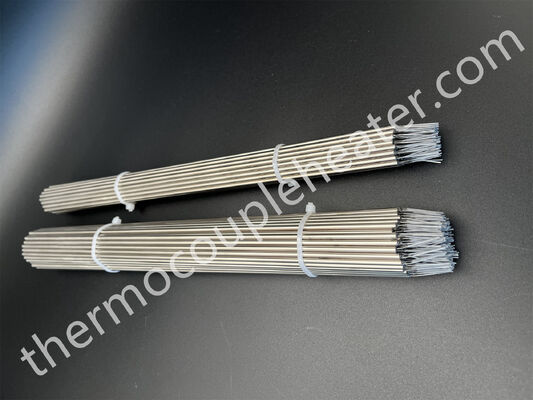

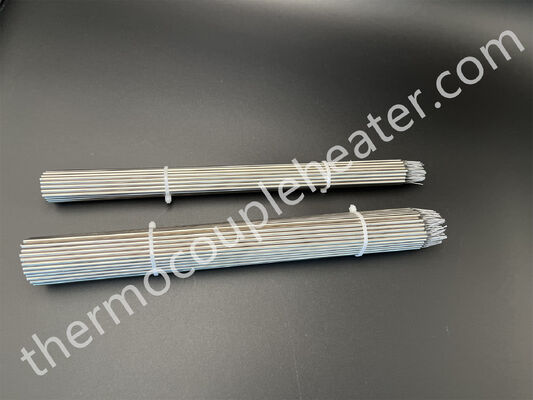

High Response Stronger Durable multi core K Type semi-finished Thermocouple
Description:
1) thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
2) The products offered are Thermocouples, RTDs, Thermowells, Instrumentation and Control cables & wires Signal , Temperature Calibration Equipments, Pyrometers, Industrial heaters, Furnaces and related accessories. Accredited Calibration services are provided for all kind of temperature sensors and furnaces including pyrometers for temperature range -196°C to 2700°C.
3) Magnesium Oxide insulated thermocouples, commonly referred as MgO thermocouples, are used in many process and laboratory applications. They are available in all thermocouple element types, a wide variety of sheath diameters and materials, they are rugged in nature and bendable, and their fairly high-temperature ratings make MgO thermocouples a popular choice for a multitude of temperature measuring applications.
Specification:
Name: Mineral Insulated Cable
Type: K, N, E, J, T
Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600,601, Nicrobell,SS446,SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 and GH3128
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
MOQ: 100m
Certificate: ISO,SGS
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T,Western Union, L/C
Advantage: Competitive price and best service
| Product Name |
Code |
Type |
Sheath Material |
Outer Dia(mm) |
Temperature |
| Ni Cr-Ni Si |
KK |
K |
SS304 |
0.5-1.0 |
400 |
| SS321 |
1.5-3.2 |
600 |
| SS316 |
4.0-8.0 |
800 |
| |
0.5-1.0 |
500 |
| SS310 |
1.5-3.2 |
800 |
| INCL600 |
4.0-6.4 |
900 |
| |
8.0-12.7 |
1000 |
| Ni Cr Si-Ni Si |
NK |
N |
SS304 |
0.5-1.0 |
400 |
| SS321 |
1.5-3.2 |
600 |
| SS316 |
4.0-8.0 |
800 |
| |
0.5-1.0 |
500 |
| SS310 |
1.5-3.2 |
800 |
| INCL600 |
4.0-6.4 |
900 |
| |
8.0-12.7 |
1000 |
| Ni Cr-Konstantan |
EK |
E |
SS304 |
0.5-1.0 |
400 |
| SS321 |
1.5-3.2 |
500 |
| SS316 |
4.0-8.0 |
800 |
| Fe-Konstantan |
JK |
J |
SS304 |
1.0 |
300 |
| SS321 |
1.5-3.2 |
500 |
| SS316 |
4.0-8.0 |
800 |
| Cu-Konstantan |
TK |
T |
SS304 |
1.0 |
-200——100 |
| SS321 |
1.5-3.2 |
100-200
|
